ROB1 series is used for seawater desalination reverse osmosis membrane, and Naino ROB1 series membrane element belongs to high-pressure concentrated membrane products; The shell of this series of components is encapsulated in FRP winding; It can withstand pressure shocks up to 90 bar, and the unique parallel flow channel structure provides excellent anti-fouling and cleanability.
Order(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
GreenShipping Port :
ShanghaiLead Time :
15DaysWeight :
10KGDesalinate reverse osmosis membrane
Advantages：
1. High Salt Rejection: The ROB1 series membrane element exhibits high salt rejection, ensuring efficient seawater desalination and producing high-quality freshwater output.
2. Robust Construction: The FRP winding encapsulation of the membrane element provides durability and resistance to pressure shocks up to 90 bar, ensuring reliable performance in demanding operating conditions.
3. Excellent Anti-Fouling Properties: The unique parallel flow channel structure of the ROB1 membrane element prevents fouling and scaling, reducing the frequency of cleaning and maintenance operations.
4. Easy Cleanability: The design of the ROB1 series enables easy cleaning, further enhancing its anti-fouling properties and allowing for efficient and effective membrane maintenance.
5. Long Lifespan: With its robust construction and resistance to fouling, the ROB1 series membrane element offers a long lifespan, reducing replacement and operational costs.
6. Energy Efficiency: The high-pressure concentrated membrane design of the ROB1 series contributes to energy efficiency, reducing energy consumption during the desalination process.
parameter：
|
Models |
ROB1-8040/34 |
ROB1-8040/460 |
|
Area（ft2/m2） |
400/37 |
270/25 |
|
Flux（GPD/m3d） |
6600/25 |
4500/17 |
|
Salt Rejection（%） |
99.7% |
|
|
Testing Conditio |
32000ppmNaCl/25℃/ pH 7.5±0.5 /8%Recovery/900 psi(5.5MPa) |
|
|
Max operation temperature（℃） |
≤45 |
|
|
Max operation Pressure（Psi/MPa） |
≤1300（90bar） |
|
|
Presuure drop （psi/bar） |
6-10/0.4-0.7
|
|
|
Allowable pH
|
2-10
|
|
|
Cleaning pH |
1-13 |
|
|
Cleaning pressure （psi/bar） |
75-100/5.2-6.9 |
|
|
order size |
1812/4020/7640/7940/8038/8338 |
|
Image examples:

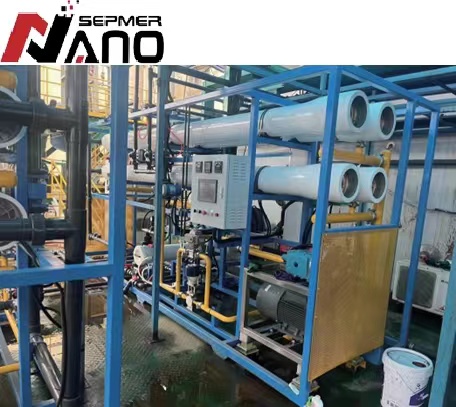

Application Scenarios
FAQ
Q：Are you a trading company or manufacturer？
A：We are a membrane FACTORY with export license, and we set our own trade in 2019.
Q：What’ s your company MOQ?
A：MOQ is one set. Favorable price will be sent based on your large order.
Q:Our supports
A: 1.We will be responsible for all sale and technical service.
2. We are always ready to solve the technical problems you meet.
The shell of this series of modules is encapsulated by FRP winding method; it can withstand pressure shocks up to 90bar, and the concentrated water flow channel can be selected according to the water quality, generally diamond-shaped 34mil and parallel 46mil.
