The MBR membrane components adopt the imported high-performance PVDF membrane filament produced by NANO-SEPMER company, which is processed into curtain membrane products in China, with the characteristics of high strength, high pollution resistance and high membrane flux.
Order(MOQ) :
1Payment :
T/TProduct Origin :
ChinaColor :
WhiteShipping Port :
ShanghaiLead Time :
15DaysWeight :
1kg
MBR membrane (curtain MBR / immersion ultrafiltration membrane)
Advantages：
1. Enhanced Strength: The use of imported high-performance PVDF membrane filament from a reputable company like NANO-SEPMER ensures that the MBR membrane components are built with exceptional strength. This strength allows the membranes to withstand the forces exerted during filtration processes, preventing damage and maintaining long-term operational stability.
2. Increased Pollution Resistance: The PVDF material is known for its excellent chemical resistance, which translates to high pollution resistance. This attribute is crucial for MBR applications as it enables the membranes to resist fouling from various contaminants, thereby maintaining high filtration efficiency and reducing the need for frequent cleaning or replacement.
3. High Membrane Flux: The processing of the PVDF filament into curtain membrane products in China is tailored to optimize the membrane's flow properties. The result is a high membrane flux, which allows for a faster rate of solute passage through the membrane. This efficiency is beneficial for achieving higher productivity and reducing the operational time required for filtration processes, ultimately leading to cost savings and increased productivity in MBR systems.
Parameter:
|
classification |
project |
model |
|
Membrane filament characteristics |
Membrane materials |
PVDFmembrane/Support layer PET |
|
filter type |
external pressure |
|
|
Internal / external caliber mm |
1.2/2.6 |
|
|
Filter caliber μm |
0.04 |
|
|
Water collection mode |
Both ends of the water collection |
|
|
Design water yield flux L/m2.hr |
8-50 |
|
|
on-stream pressure bar |
0.1 ~ -0.3 |
|
|
chlorine residue concentration mg/L |
300-500 |
|
|
working temperature ℃ |
5-35 |
|
|
Stretch fracture strength N |
＞200 |
|
|
Single filament stripping intensity Mpa |
＞0.3 |
|
|
running mode |
Submerged suction and filtration |
|
|
PH values were used |
6-9 |
|
|
Water turbidity NTU |
＜0.5 |
|
|
Reverse washing strength Mpa |
0.1-0.3 |
|
model |
effective area m2 |
Filter aperture um |
on-stream pressure bar |
running mode |
Water turbidity NTU |
|
C15 |
15 |
0.04 |
0.1 ~ -0.3 |
Submerged suction and filtration |
＜0.5
|
|
C20 |
20 |
||||
|
C30 |
30 |

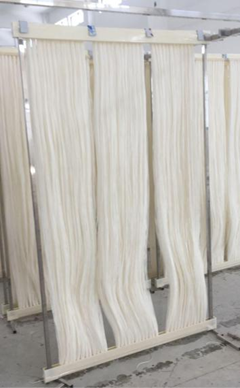

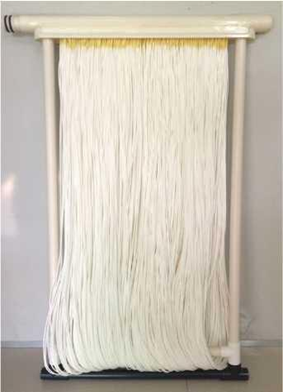

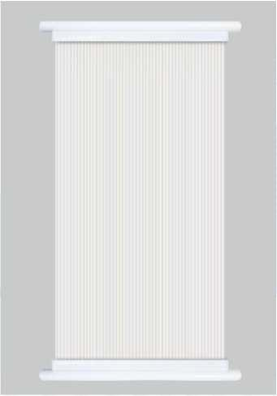

Image example:

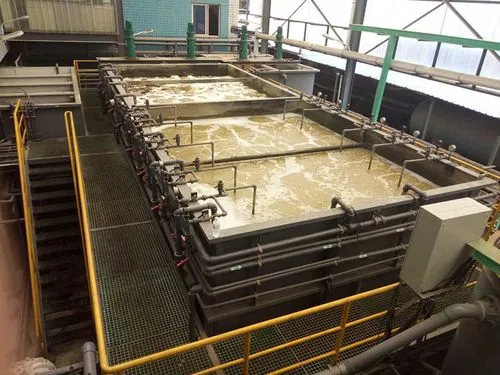

Application Scenarios
FAQ
Q：Are you a trading company or manufacturer？
A：We are a membrane FACTORY with export license, and we set our own trade in 2019.
Q：What’ s your company MOQ?
A：MOQ is one set. Favorable price will be sent based on your large order.
Q:Our supports
A: 1.We will be responsible for all sale and technical service.
2. We are always ready to solve the technical problems you meet.
